Round Baler Kits

We offer Round Baler Kits in 25 and 55 gallon capacities, both available with or without a mounting kit. If you don't feel that these options will work for you, please give us a call as we may be able to quote a system using our standard components to better fit your operation.
(Examples: If you wish to mount a system on your tractor or use an existing tank and frame)

These kits are set up for use with buffered propionic acids and water-soluble bacterial products. They are compatible with most other hay preservatives, however, additional components may be recommended to assure proper application. If you are using a different type of product, please let us know.

These units are built in-house and go through a thorough quality control process before leaving our facility. To see a video on our quality control process click here.

Items in kits are available for individual purchase

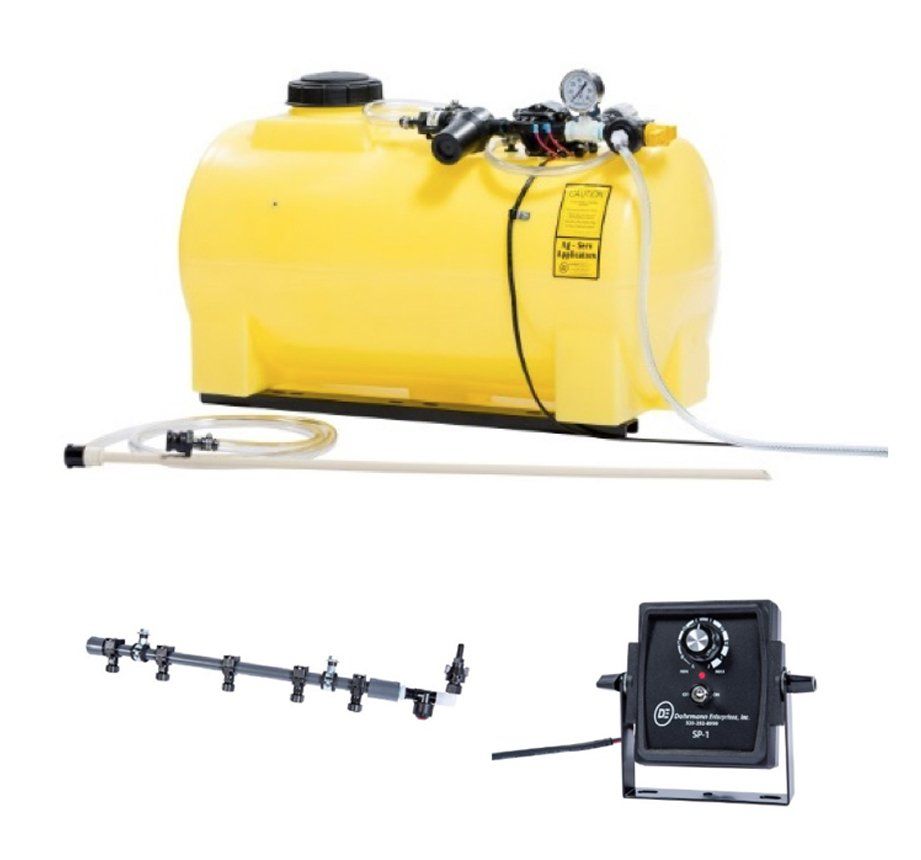

KIT-RB-25

KIT-RB-25

Dimensions: 33"L X 19.5"W X 22"H

Includes:

  • 25 Gallon Capacity Tank with flat surface mounting brackets.
  • Pump Unit Assembled and fluid tested in-house.
    • 2.0 GPM self-priming, spec-built pump with wetted components compatible with acid based and acid producing products with a pH as low as 4
    • Filter Assembly before the pump to protect the pump unit components and nozzles. Filter screen can be removed and cleaned.
    • Pressure Regulation System allows fine tuning of pressure and circulation back to the tank.
    • Stainless Steel Gauge-Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
    • Self-Fill System. You can connect the included Fill Stem Assembly to the pump unit to use the applicator pump to refill its tank.
  • Wire Harness Built and tested in-house.
    • Pre-Terminated, no need to cut and splice wiring.
    • Wire disconnect between tractor and baler.
    • Mating terminals for SP-1 Speed Control (Included in KIT-RB-25)
  • Round Baler Nozzle Tube Assembly Built and fluid tested in-house.
    • Nozzle fittings and spacing for 4’ and 5’ wide round balers installed.
    • Includes all mounting hardware.
  • Round Baler Nozzle Assembly
    • Includes a variety of nozzle sizes that cover calibration for most product applications on round balers.
  • SP-1 Speed Control
    • Built-In On/Off Switch.
    • Allows application rate to be changed by adjusting the dial for changing harvest conditions.
    • LED Status Indicator.
    • Run/Hold Input Can currently be used with our GPS Run/Hold Sensor (see below for this option).
    • 3 year warranty (for more information, click here)
  • 1 Year Applicator Warranty

Additional Options

NEW!

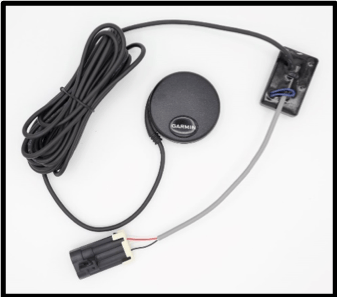

GPS Run/Hold Sensor for Round Balers (#190050)

  • Uses GPS Signal (receiver included) to turn your applicator on/off with the movement of the tractor.
  • Turns the applicator off when you stop to wrap and eject bales
  • Starts the applicator when you are moving again

For more information, click here

button

KIT-RB-25-SU

KIT-RB-25-SU

Includes:

  • 25 Gallon Capacity Tank with flat surface mounting brackets.
  • Pump Unit Assembled and fluid tested in-house.
    • 2.0 GPM self-priming, spec-built pump with wetted components compatible with acid based and acid producing products with a pH as low as 4
    • Filter Assembly before the pump to protect the pump unit components and nozzles. Filter screen can be removed and cleaned.
    • Pressure Regulation System allows fine tuning of pressure and circulation back to the tank.
    • Stainless Steel Gauge-Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
    • Self-Fill System. You can connect the included Fill Stem Assembly to the pump unit to use the applicator pump to refill its tank.
  • Wire Harness – Built and tested in-house.
    • Pre-Terminated, no need to cut and splice wiring.
    • Wire disconnect between tractor and baler.
    • Mating terminals for SP-1 Speed Control (Included in KIT-RB-25).
  • Round Baler Nozzle Tube Assembly – Built and fluid tested in-house.
    • Nozzle fittings and spacing for 4’ and 5’ wide round balers installed.
    • Includes all mounting hardware.
  • Round Baler Nozzle Assembly
    • Includes a variety of nozzle sizes that cover calibration for most product applications on round balers.
  • SP-1 Speed Control
    • Built-In On/Off Switch.
    • Allows application rate to be changed by adjusting the dial for changing harvest conditions.
    • LED Status Indicator.
    • Run/Hold Input Can currently be used with our GPS Run/Hold Sensor (see below for this option).
    • 3 year warranty (for more information, click here)
  • SURBM-25 Semi-Universal Round Baler Mounting Kit
    • Mounts the applicator over the hitch of your round baler
    • Baler hitch must be between 11.5”-24” wide, at 11” on center front to back
    • Not compatible with New Holland or Case IH Baler many of these balers have a platform on the front to attach the applicator (see KIT-RB-25)
  • 1 Year Applicator Warranty

Additional Options

NEW!
GPS Run/Hold Sensor for Round Balers (#190050)

  • Uses GPS Signal (receiver included) to turn your applicator on/off with the movement of the tractor.
  • Turns the applicator off when you stop to wrap and eject bales
  • Starts the applicator when you are moving again

For more information, click here

button

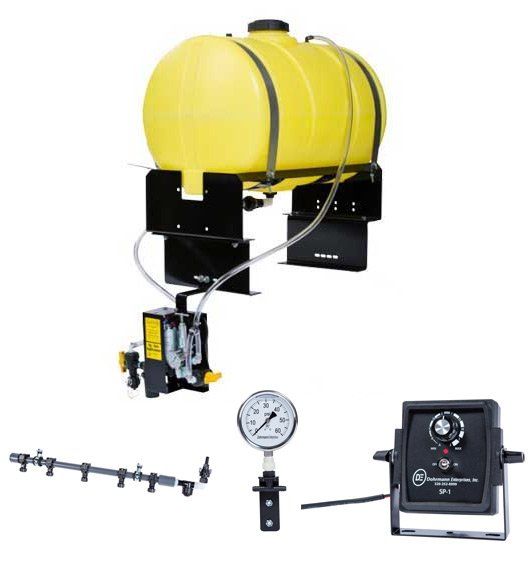

KIT-RB-55

KIT-RB-55

Tank & Frame Dimensions: 38"L X 23"W X 32"H

Includes:

  • 55 Gallon Capacity Tank with flat surface mounting brackets.
  • Pump Unit Assembled and fluid tested in-house.
    • 3.0 GPM self-priming, spec-built pump with wetted components compatible with acid based and acid producing products with a pH as low as 4
    • Filter Assembly before the pump to protect the pump unit components and nozzles. Filter screen can be removed and cleaned.
    • Pressure Regulation System, with heavy duty regulator allows fine tuning of pressure and circulation back to the tank.
    • Stainless Steel Gauge-Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
    • Deluxe Self-Fill System. You can connect the included Fill Stem Assembly to the pump unit to use the applicator pump to refill its tank.
  • Wire Harness – Built and tested in-house.
    • Pre-Terminated, no need to cut and splice wiring.
    • Wire disconnect between tractor and baler.
    • Mating terminals for SP-1 Speed Control (Included in KIT-RB-55).
  • Round Baler Nozzle Tube Assembly – Built and fluid tested in-house.
    • Nozzle fittings and spacing for 4’ and 5’ wide round balers installed.
    • Includes all mounting hardware.
  • Round Baler Nozzle Assembly
    • Includes a variety of nozzle sizes that cover calibration for most product applications on round balers.
  • 4” In-line Gauge Assembly
    • Large 4” gauge which is easy to ready, mounts in the pressure line between the pump unit and nozzles (some applications the pump unit may not be able to be viewed)
    • Stainless Steel Gauge Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
  • SP-1 Speed Control
    • Built-In On/Off Switch.
    • Allows application rate to be changed by adjusting the dial for changing harvest conditions.
    • LED Status Indicator.
    • Run/Hold Input Can currently be used with our GPS Run/Hold Sensor (see below for this option).
    • 3 year warranty (for more information, click here)
  • 1 Year Applicator Warranty

Additional Options

NEW!
GPS Run/Hold Sensor for Round Balers (#190050)

  • Uses GPS Signal (receiver included) to turn your applicator on/off with the movement of the tractor.
  • Turns the applicator off when you stop to wrap and eject bales
  • Starts the applicator when you are moving again

For more information, click here

button

KIT-RB-55-SU

KIT-RB-55-SU

Tank & Frame Dimensions: 38"L X 23"W X 32"H

Includes:

  • 55 Gallon Capacity Tank with flat surface mounting brackets.
  • Pump Unit – Assembled and fluid tested in-house.
    • 3.0 GPM self-priming, spec-built pump with wetted components compatible with acid based and acid producing products with a pH as low as 4
    • Filter Assembly before the pump to protect the pump unit components and nozzles. Filter screen can be removed and cleaned.
    • Pressure Regulation System, with heavy duty regulator allows fine tuning of pressure and circulation back to the tank.
    • Stainless Steel Gauge – Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
    • Deluxe Self-Fill System. You can connect the included Fill Stem Assembly to the pump unit to use the applicator pump to refill its tank.
  • Wire Harness – Built and tested in-house.
    • Pre-Terminated, no need to cut and splice wiring.
    • Wire disconnect between tractor and baler.
    • Mating terminals for SP-1 Speed Control (Included in KIT-RB-55).
  • Round Baler Nozzle Tube Assembly – Built and fluid tested in-house.
    • Nozzle fittings and spacing for 4’ and 5’ wide round balers installed.
    • Includes all mounting hardware.
  • Round Baler Nozzle Assembly
    • Includes a variety of nozzle sizes that cover calibration for most product applications on round balers.
  • 4” In-line Gauge Assembly
    • Large 4” gauge which is easy to ready, mounts in the pressure line between the pump unit and nozzles (some applications the pump unit may not be able to be viewed)
    • Stainless Steel Gauge – Internals, Externals, & Port to be most compatible with the acid-based and acid-producing products commonly found in our industry.
  • SP-1 Speed Control
    • Built-In On/Off Switch.
    • Allows application rate to be changed by adjusting the dial for changing harvest conditions.
    • LED Status Indicator.
    • Run/Hold Input – Can currently be used with our GPS Run/Hold Sensor (see below for this option).
    • 3 year warranty (for more information, click here)
  • SURBM-55 Semi-Universal Round Baler Mounting Kit
    • Mounts the applicator over the hitch of your round baler
    • Baler hitch must be between 11.5” – 24” wide, at 13” on center front to back
    • Not compatible with New Holland or Case IH Baler – many of these balers have a platform on the front to attach the applicator (see KIT-RB-55)
  • 1 Year Applicator Warranty

Additional Options

NEW!
GPS Run/Hold Sensor for Round Balers (#190050)

  • Uses GPS Signal (receiver included) to turn your applicator on/off with the movement of the tractor.
  • Turns the applicator off when you stop to wrap and eject bales
  • Starts the applicator when you are moving again

For more information, click here
